Colorbar

Colorbars provide a visual representation of the mapping between data values and colors in heatmaps and other color-coded visualizations. Fugl.jl supports both vertical (VerticalColorbar) and horizontal (HorizontalColorbar) colorbars.

The colorbar is a PlotElement, and is therefore drawn using the Plot function. The size and layout is managed like with any other Fugl component.

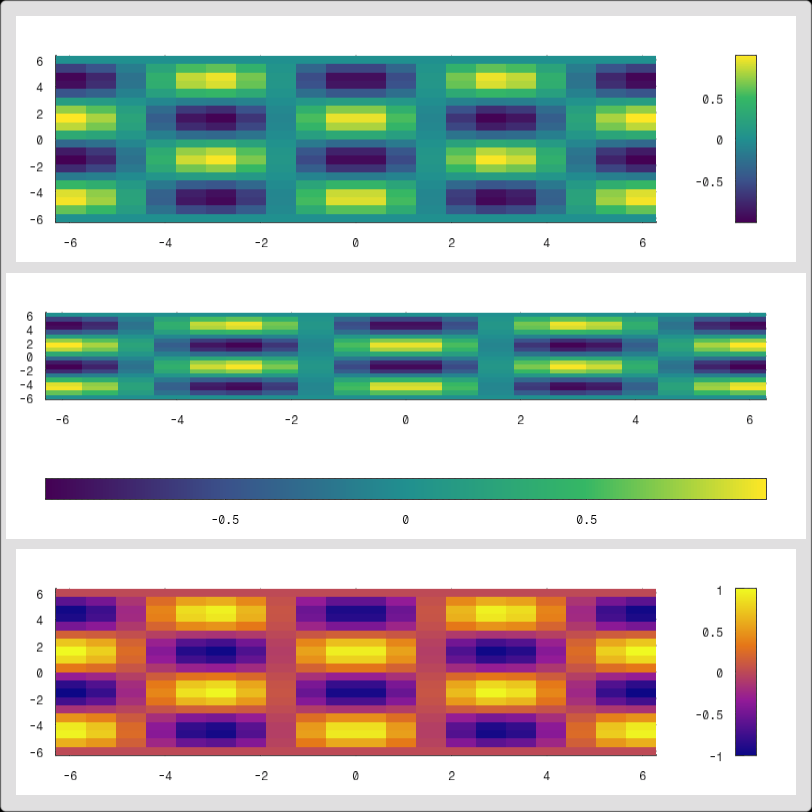

Basic Colorbar Example

using Fugl

function colorbar_demo()
    # Create sample data for heatmap
    x_range = range(-2π, 2π, length=20)
    y_range = range(-2π, 2π, length=20)

    x_data = Float32.(collect(x_range))
    y_data = Float32.(collect(y_range))

    # Create 2D function data
    z_data = Float32.([sin(x) * cos(y) for y in y_range, x in x_range])

    # Create main heatmap
    heatmap = HeatmapElement(z_data, x_range=(x_data[1], x_data[end]), y_range=(y_data[1], y_data[end]), colormap=:viridis)
    main_plot = Fugl.Plot([heatmap])

    # Create vertical colorbar for the heatmap
    vertical_colorbar = VerticalColorbar(heatmap)

    # Create horizontal colorbar for the heatmap
    horizontal_colorbar = HorizontalColorbar(heatmap)

    # Create UI layout examples
    ui = Container(
        Column([
            # Example 1: Plot with vertical colorbar on the right
            IntrinsicRow([
                    main_plot,
                    FixedWidth(Plot([vertical_colorbar], PlotStyle(
                            show_left_axis=true,
                            show_right_axis=true,
                            show_top_axis=true,
                            show_bottom_axis=true,
                            show_x_ticks=false,
                            show_y_ticks=true
                        )), 100.0f0)
                ], spacing=0.0
            ),

            # Example 2: Plot with horizontal colorbar at bottom
            IntrinsicColumn([
                    main_plot,
                    FixedHeight(Plot([horizontal_colorbar], PlotStyle(
                            show_left_axis=true,
                            show_right_axis=true,
                            show_top_axis=true,
                            show_bottom_axis=true,
                            show_x_ticks=true,
                            show_y_ticks=false
                        )), 100.0f0)
                ], spacing=0.0
            ),

            # Example 3: Different colormap with custom styling
            IntrinsicRow([
                    Plot([HeatmapElement(z_data, x_range=(x_data[1], x_data[end]), y_range=(y_data[1], y_data[end]), colormap=:plasma)]),
                    FixedWidth(Plot([VerticalColorbar(:plasma, (-1.0f0, 1.0f0))], PlotStyle(
                            show_left_axis=true,
                            show_right_axis=true,
                            show_top_axis=true,
                            show_bottom_axis=true,
                            show_x_ticks=false,
                            show_y_ticks=true
                        )), 100.0f0)
                ], spacing=0.0
            ),
        ], spacing=0.0, padding=0.0)
    )

    return ui
end

screenshot(colorbar_demo, "colorbar_multiple.png", 812, 812);

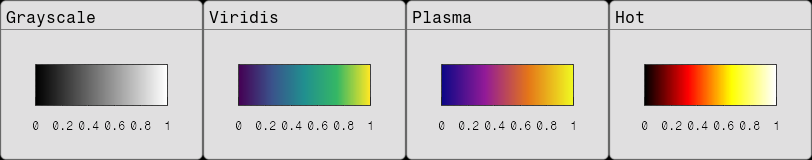

Different Colormap Types

This example shows all four available colormaps with the same data range:

using Fugl
using Fugl: Text

function colormap_types_demo()
    # Create colorbars with different colormaps
    grayscale_bar = HorizontalColorbar(:grayscale, (0.0f0, 1.0f0))
    viridis_bar = HorizontalColorbar(:viridis, (0.0f0, 1.0f0))
    plasma_bar = HorizontalColorbar(:plasma, (0.0f0, 1.0f0))
    hot_bar = HorizontalColorbar(:hot, (0.0f0, 1.0f0))

    # Colorbar sizing, style and layout
    MyColorBar(plot_element) = FixedHeight(Plot([plot_element], PlotStyle(
            background_color=Vec4(0.0f0, 0.0f0, 0.0f0, 0.0f0),
            show_left_axis=true,
            show_right_axis=true,
            show_top_axis=true,
            show_bottom_axis=true,
            show_x_ticks=true,
            show_y_ticks=false,
            padding=30.0f0
        )), 100.0f0)

    ui =
        IntrinsicRow([
            Card(
                "Grayscale",
                MyColorBar(grayscale_bar)
            ),
            Card(
                "Viridis",
                MyColorBar(viridis_bar)
            ),
            Card(
                "Plasma",
                MyColorBar(plasma_bar)
            ),
            Card(
                "Hot",
                MyColorBar(hot_bar)
            )
        ], spacing=0.0, padding=0.0)
    return ui
end

screenshot(colormap_types_demo, "colorbar_types.png", 812, 160);

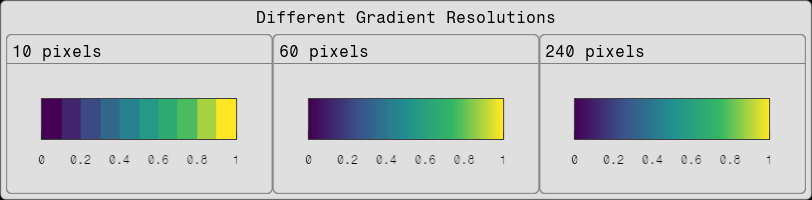

Different Gradient Resolutions

This example shows the effect of different gradient_pixels values on the smoothness of the colorbar gradient:

using Fugl
using Fugl: Text

function gradient_resolution_demo()
    # Create colorbars with different gradient resolutions
    low_res_bar = HorizontalColorbar(:viridis, (0.0f0, 1.0f0), gradient_pixels=10)
    medium_res_bar = HorizontalColorbar(:viridis, (0.0f0, 1.0f0), gradient_pixels=60)
    high_res_bar = HorizontalColorbar(:viridis, (0.0f0, 1.0f0), gradient_pixels=240)

    # Colorbar sizing, style and layout
    MyColorBar(plot_element) = FixedHeight(Plot([plot_element], PlotStyle(
            background_color=Vec4(0.0f0, 0.0f0, 0.0f0, 0.0f0),
            show_left_axis=true,
            show_right_axis=true,
            show_top_axis=true,
            show_bottom_axis=true,
            show_x_ticks=true,
            show_y_ticks=false,
            padding=30.0f0
        )), 100.0f0)

    ui = Container(
        IntrinsicColumn([
            IntrinsicHeight(Text("Different Gradient Resolutions")),
            IntrinsicRow([
                Card(
                    "10 pixels",
                    MyColorBar(low_res_bar)
                ),
                Card(
                    "60 pixels",
                    MyColorBar(medium_res_bar)
                ),
                Card(
                    "240 pixels",
                    MyColorBar(high_res_bar)
                ),
            ], spacing=0.0, padding=0.0)
        ], spacing=10.0, padding=0.0)
    )
    return ui
end

screenshot(gradient_resolution_demo, "colorbar_resolution.png", 812, 200);
