Heatmap

using Fugl
using Fugl: Text, HeatmapElement

function MyApp()
    # Create test image data - 2D Gaussian pattern with waves
    size_x, size_y = 30, 30
    data = Matrix{Float32}(undef, size_y, size_x)
    center_x, center_y = size_x / 2, size_y / 2

    for j in 1:size_y
        for i in 1:size_x
            # Distance from center
            dx = i - center_x
            dy = j - center_y
            distance_sq = dx^2 + dy^2

            # Gaussian pattern
            data[j, i] = exp(-distance_sq / (2 * (size_x / 6)^2))

            # Add sinusoidal pattern
            wave = 0.3 * sin(i * 0.3) * cos(j * 0.3)
            data[j, i] += wave

            # Add some noise
            data[j, i] += 0.1 * (rand() - 0.5)
        end
    end

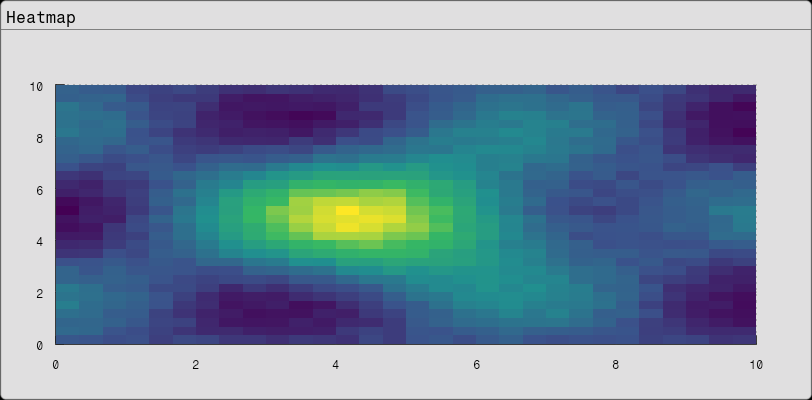

    # Create heatmap element with viridis colormap
    elements = [
        HeatmapElement(
            data;
            x_range=(0.0, 10.0),
            y_range=(0.0, 10.0),
            colormap=:viridis,
        )
    ]

    Card(
        "Heatmap",
        Plot(
            elements,
            PlotStyle(
                background_color=Vec4{Float32}(0.88f0, 0.875f0, 0.88f0, 1.0f0),
                grid_color=Vec4{Float32}(0.5, 0.5, 0.5, 1.0),           # Gray grid
                axis_color=Vec4{Float32}(0.0, 0.0, 0.0, 1.0),           # Black axes
                show_grid=true,
                padding=50.0f0
            )
        )
    )
end

screenshot(MyApp, "heatmap.png", 812, 400);

Available Colormaps

The HeatmapElement supports several built-in colormaps:

• :viridis - Perceptually uniform colormap (purple to yellow)
• :plasma - High contrast colormap (purple to pink to yellow)
• :hot - Classic hot colormap (black to red to yellow to white)
• :grayscale - Simple grayscale mapping

You can specify the colormap when creating a HeatmapElement:

HeatmapElement(data; colormap=:viridis)  # Default
HeatmapElement(data; colormap=:plasma)   # High contrast
HeatmapElement(data; colormap=:hot)      # Classic hot colors
HeatmapElement(data; colormap=:grayscale) # Grayscale

NaN Value Handling

All colormaps support proper NaN value handling. You can specify a custom color for NaN values using the nan_color parameter:

HeatmapElement(data;
    colormap=:viridis,
    nan_color=(1.0, 0.0, 1.0, 1.0)  # Magenta for NaN values
)

NaN values in the data will be displayed in the specified nan_color regardless of which colormap is used, while valid data points will be colored according to the chosen colormap.

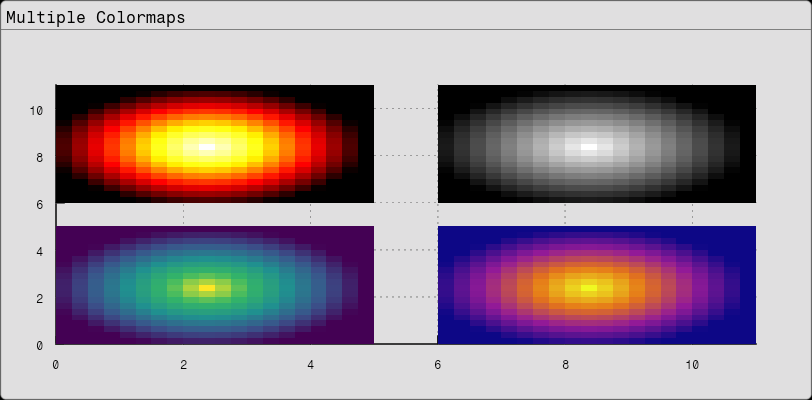

Multiple Colormaps Example

using Fugl
using Fugl: Text, HeatmapElement

function MyApp()
    # Create simple test data - radial pattern
    size_x, size_y = 20, 20
    data = Matrix{Float32}(undef, size_y, size_x)

    for j in 1:size_y
        for i in 1:size_x
            # Create radial pattern
            x_norm = (i - size_x/2) / (size_x/2)
            y_norm = (j - size_y/2) / (size_y/2)
            radius = sqrt(x_norm^2 + y_norm^2)
            data[j, i] = max(0.0f0, 1.0f0 - radius)
        end
    end

    # Create heatmap elements with different colormaps
    elements = [
        HeatmapElement(
            data;
            x_range=(0.0, 5.0),
            y_range=(0.0, 5.0),
            colormap=:viridis,
        ),
        HeatmapElement(
            data;
            x_range=(6.0, 11.0),
            y_range=(0.0, 5.0),
            colormap=:plasma,
        ),
        HeatmapElement(
            data;
            x_range=(0.0, 5.0),
            y_range=(6.0, 11.0),
            colormap=:hot,
        ),
        HeatmapElement(
            data;
            x_range=(6.0, 11.0),
            y_range=(6.0, 11.0),
            colormap=:grayscale,
        )
    ]

    Card(
        "Multiple Colormaps",
        Plot(
            elements,
            PlotStyle(
                background_color=Vec4{Float32}(0.88f0, 0.875f0, 0.88f0, 1.0f0),
                grid_color=Vec4{Float32}(0.5, 0.5, 0.5, 1.0),
                axis_color=Vec4{Float32}(0.0, 0.0, 0.0, 1.0),
                show_grid=true,
                padding=50.0f0
            )
        )
    )
end

screenshot(MyApp, "multipleColormaps.png", 812, 400);

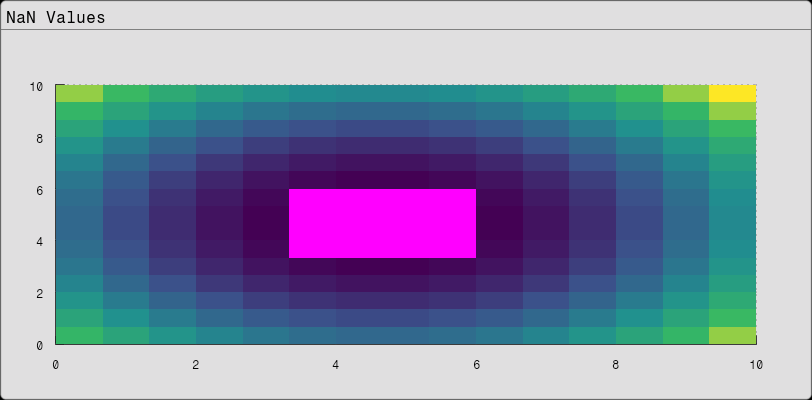

NaN Values Example

The API support custom colors for NaN-values.

using Fugl
using Fugl: Text, HeatmapElement

function MyApp()
    # Create data with NaN values
    size_x, size_y = 15, 15
    data = Matrix{Float32}(undef, size_y, size_x)

    for j in 1:size_y
        for i in 1:size_x
            # Create pattern with some NaN regions
            x_norm = (i - size_x/2) / (size_x/2)
            y_norm = (j - size_y/2) / (size_y/2)

            if abs(x_norm) < 0.3 && abs(y_norm) < 0.3
                data[j, i] = NaN32  # NaN in center region
            else
                data[j, i] = x_norm^2 + y_norm^2
            end
        end
    end

    elements = [
        HeatmapElement(
            data;
            x_range=(0.0, 10.0),
            y_range=(0.0, 10.0),
            colormap=:viridis,
            nan_color=(1.0, 0.0, 1.0, 1.0)  # Magenta for NaN
        )
    ]

    Card(
        "NaN Values",
        Plot(
            elements,
            PlotStyle(
                background_color=Vec4{Float32}(0.88f0, 0.875f0, 0.88f0, 1.0f0),
                show_grid=true,
                padding=50.0f0
            )
        )
    )
end

screenshot(MyApp, "nanValues.png", 812, 400);

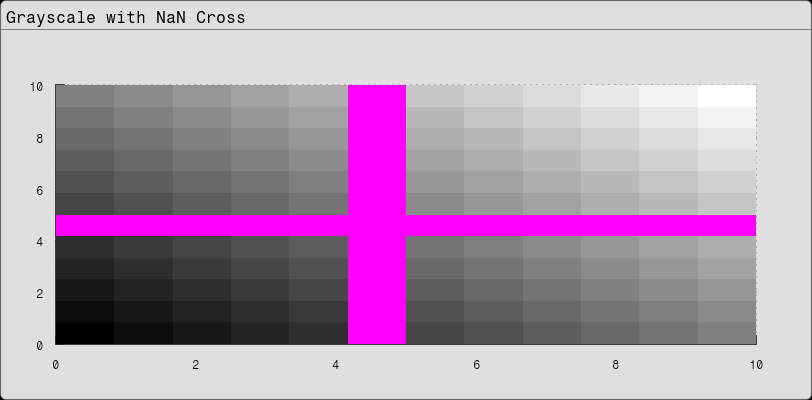

Grayscale NaN Example

You can also have a colored NaN cell in grayscale plots.

using Fugl
using Fugl: Text, HeatmapElement

function MyApp()
    # Create grayscale data with NaN cross pattern
    size_x, size_y = 12, 12
    data = Matrix{Float32}(undef, size_y, size_x)

    for j in 1:size_y
        for i in 1:size_x
            # Create NaN cross pattern in the middle
            if i == 6 || j == 6
                data[j, i] = NaN32
            else
                # Create simple gradient
                data[j, i] = Float32((i + j) / (size_x + size_y))
            end
        end
    end

    elements = [
        HeatmapElement(
            data;
            x_range=(0.0, 10.0),
            y_range=(0.0, 10.0),
            colormap=:grayscale,
            nan_color=(1.0, 0.0, 1.0, 1.0)  # Magenta for NaN
        )
    ]

    Card(
        "Grayscale with NaN Cross",
        Plot(
            elements,
            PlotStyle(
                background_color=Vec4{Float32}(0.88f0, 0.875f0, 0.88f0, 1.0f0),
                show_grid=true,
                padding=50.0f0
            )
        )
    )
end

screenshot(MyApp, "grayscaleNaN.png", 812, 400);

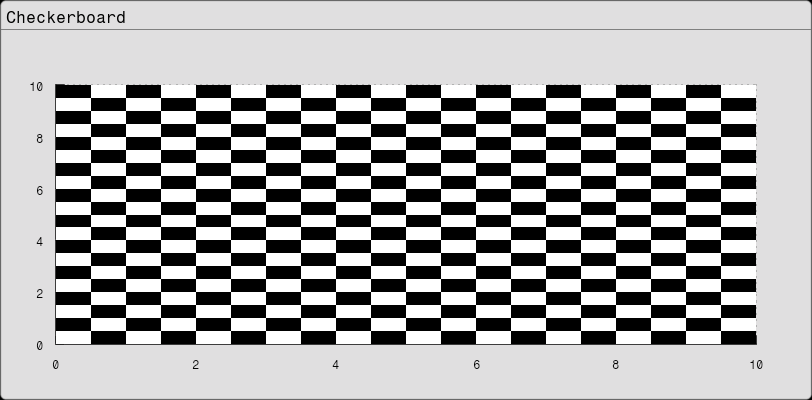

Checkerboard Example

using Fugl
using Fugl: Text, HeatmapElement

function MyApp()
    # Create checkerboard pattern
    size_x, size_y = 20, 20
    data = Float32[mod(i+j, 2) == 0 ? 1.0 : 0.0 for i in 1:size_y, j in 1:size_x]

    elements = [
        HeatmapElement(
            data;
            x_range=(0.0, 10.0),
            y_range=(0.0, 10.0),
            colormap=:hot,
        )
    ]

    Card(
        "Checkerboard",
        Plot(
            elements,
            PlotStyle(
                background_color=Vec4{Float32}(0.88f0, 0.875f0, 0.88f0, 1.0f0),
                show_grid=true,
                padding=50.0f0
            )
        )
    )
end

screenshot(MyApp, "checkerboard.png", 812, 400);

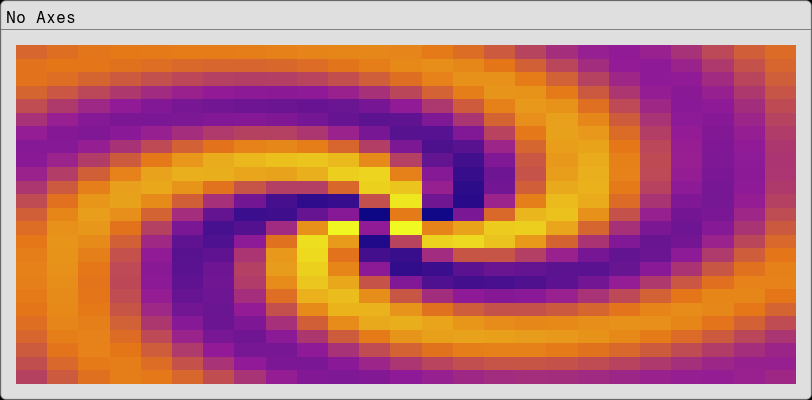

No Axes Example

using Fugl
using Fugl: Text, HeatmapElement

function MyApp()
    # Create spiral pattern
    size_x, size_y = 25, 25
    data = Matrix{Float32}(undef, size_y, size_x)

    for j in 1:size_y
        for i in 1:size_x
            x_norm = (i - size_x/2) / (size_x/2)
            y_norm = (j - size_y/2) / (size_y/2)
            angle = atan(y_norm, x_norm)
            radius = sqrt(x_norm^2 + y_norm^2)
            data[j, i] = sin(angle * 3 + radius * 8) * exp(-radius)
        end
    end

    elements = [
        HeatmapElement(
            data;
            x_range=(0.0, 10.0),
            y_range=(0.0, 10.0),
            colormap=:plasma,
        )
    ]

    Card(
        "No Axes",
        Plot(
            elements,
            PlotStyle(
                background_color=Vec4{Float32}(0.88f0, 0.875f0, 0.88f0, 1.0f0),
                show_grid=false,
                show_left_axis=false,
                show_right_axis=false,
                show_top_axis=false,
                show_bottom_axis=false,
                show_x_tick_marks=false,
                show_y_tick_marks=false,
                show_x_tick_labels=false,
                show_y_tick_labels=false,
                padding=10.0f0
            )
        )
    )
end

screenshot(MyApp, "noAxes.png", 812, 400);
