Tooltip
The Tooltip component provides overlay tooltips that appear when hovering over wrapped components. It uses a wrapper pattern similar to the Modal component, making it easy to add tooltips to any component.

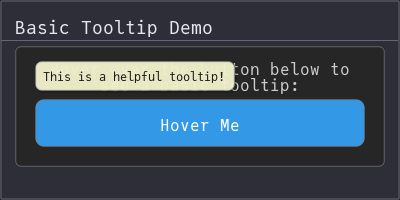

Basic Tooltip
using Fugl
using Fugl: Tooltip, TooltipStyle, Card
# Dark theme card style
dark_card_style = ContainerStyle(
background_color = Vec4f(0.18, 0.18, 0.22, 1.0), # Dark gray background
border_color = Vec4f(0.4, 0.4, 0.45, 1.0), # Subtle border
border_width = 1.5f0,
corner_radius = 0.0f0,
padding = 15.0f0
)
# Dark theme title style
dark_title_style = TextStyle(
size_points = 18,
color = Vec4f(0.9, 0.9, 0.95, 1.0) # Light text for title
)
# Persistent state (essential for timing-based tooltips)
tooltip_state = Ref(TooltipState(is_visible=true))
function MyApp()
# Dark theme container
Card(
"Basic Tooltip Demo",
Container(
IntrinsicColumn([
Fugl.Text("Hover over the button below to see a basic tooltip:",
style=TextStyle(color=Vec4f(0.8, 0.8, 0.8, 1.0))),
# Basic tooltip wrapping a button
Tooltip(
"This is a helpful tooltip!",
Container(
Fugl.Text("Hover Me", style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0))),
style=ContainerStyle(
background_color=Vec4f(0.2, 0.6, 0.9, 1.0),
padding=15.0f0,
corner_radius=8.0f0
)
),
position=:top,
show_delay=0.3,
hide_delay=0.1,
state=tooltip_state[],
on_state_change=(new_state) -> tooltip_state[] = new_state
)
], spacing=15.0f0),
style=ContainerStyle(
background_color=Vec4f(0.15, 0.15, 0.15, 1.0),
padding=20.0f0
)
),
style=dark_card_style,
title_style=dark_title_style
)
end
screenshot(MyApp, "tooltip_basic.png", 400, 200)

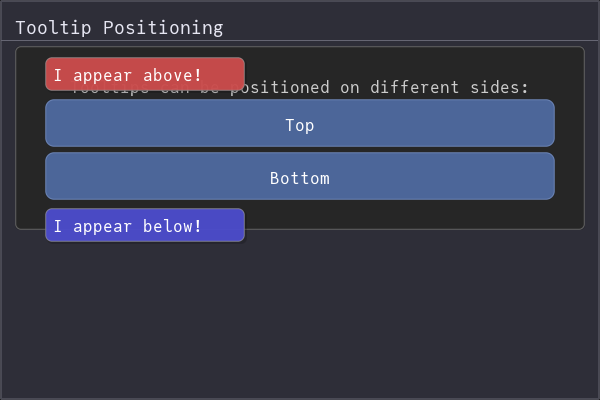

Positioned Tooltips
using Fugl
using Fugl: Tooltip, TooltipStyle, Card
# Persistent states for each tooltip
tooltip1_state = Ref(TooltipState(is_visible=true))
tooltip2_state = Ref(TooltipState(is_visible=true))
tooltip3_state = Ref(TooltipState(is_visible=true))
tooltip4_state = Ref(TooltipState(is_visible=true))
# Button style for dark theme
button_style = ContainerStyle(
background_color=Vec4f(0.3, 0.4, 0.6, 1.0),
border_color=Vec4f(0.5, 0.6, 0.8, 1.0),
border_width=1.0f0,
padding=15.0f0,
corner_radius=8.0f0
)
# Dark theme card style
dark_card_style = ContainerStyle(
background_color = Vec4f(0.18, 0.18, 0.22, 1.0), # Dark gray background
border_color = Vec4f(0.4, 0.4, 0.45, 1.0), # Subtle border
border_width = 1.5f0,
corner_radius = 0.0f0,
padding = 15.0f0
)
# Dark theme title style
dark_title_style = TextStyle(
size_points = 18,
color = Vec4f(0.9, 0.9, 0.95, 1.0) # Light text for title
)
function MyApp()
Card(
"Tooltip Positioning",
Container(
IntrinsicColumn([
Fugl.Text("Tooltips can be positioned on different sides:",
style=TextStyle(color=Vec4f(0.8, 0.8, 0.8, 1.0))),
# Grid layout for positioning examples
IntrinsicColumn([
Tooltip(
"I appear above!",
Container(
Fugl.Text("Top", style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0))),
style=button_style
),
position=:top,
show_delay=0.3,
hide_delay=0.1,
style=TooltipStyle(
background_color=Vec4f(0.8, 0.3, 0.3, 0.95),
text_style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0))
),
state=tooltip1_state[],
on_state_change=(new_state) -> tooltip1_state[] = new_state
),
# Bottom tooltip
Tooltip(
"I appear below!",
Container(
Fugl.Text("Bottom", style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0))),
style=button_style
),
position=:bottom,
show_delay=0.3,
hide_delay=0.1,
style=TooltipStyle(
background_color=Vec4f(0.3, 0.3, 0.8, 0.95),
text_style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0))
),
state=tooltip4_state[],
on_state_change=(new_state) -> tooltip4_state[] = new_state
)
], spacing=5.0f0)
], spacing=5.0f0),
style=ContainerStyle(
background_color=Vec4f(0.15, 0.15, 0.15, 1.0),
padding=30.0f0
)
),
style=dark_card_style,
title_style=dark_title_style
)
end
screenshot(MyApp, "tooltip_positioning.png", 600, 400)

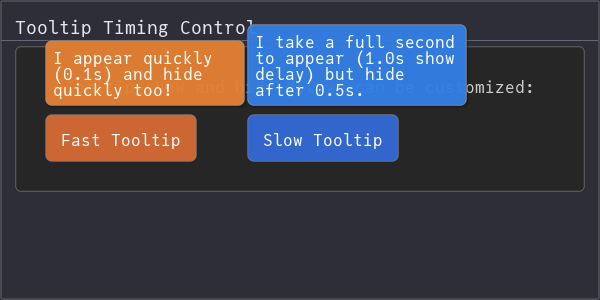

Timing and Delay Customization
using Fugl
using Fugl: Tooltip, TooltipStyle, Card
# Dark theme card style
dark_card_style = ContainerStyle(
background_color = Vec4f(0.18, 0.18, 0.22, 1.0), # Dark gray background
border_color = Vec4f(0.4, 0.4, 0.45, 1.0), # Subtle border
border_width = 1.5f0,
corner_radius = 0.0f0,
padding = 15.0f0
)
# Dark theme title style
dark_title_style = TextStyle(
size_points = 18,
color = Vec4f(0.9, 0.9, 0.95, 1.0) # Light text for title
)
# States with different timing
fast_tooltip_state = Ref(TooltipState(is_visible=true))
slow_tooltip_state = Ref(TooltipState(is_visible=true))
function MyApp()
Card(
"Tooltip Timing Control",
Container(
IntrinsicColumn([
Fugl.Text("Tooltip show and hide delays can be customized:",
style=TextStyle(color=Vec4f(0.8, 0.8, 0.8, 1.0))),
IntrinsicRow([
# Fast tooltip
Tooltip(
"I appear quickly (0.1s) and hide quickly too!",
Container(
Fugl.Text("Fast Tooltip", style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0))),
style=ContainerStyle(
background_color=Vec4f(0.8, 0.4, 0.2, 1.0),
padding=15.0f0,
corner_radius=6.0f0
)
),
style=TooltipStyle(
width=200.0f0,
background_color=Vec4f(0.9, 0.5, 0.2, 0.95),
text_style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0))
),
position=:top,
show_delay=0.1,
hide_delay=0.1,
state=fast_tooltip_state[],
on_state_change=(new_state) -> fast_tooltip_state[] = new_state
),
# Slow tooltip
Tooltip(
"I take a full second to appear (1.0s show delay) but hide after 0.5s.",
Container(
Fugl.Text("Slow Tooltip", style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0))),
style=ContainerStyle(
background_color=Vec4f(0.2, 0.4, 0.8, 1.0),
padding=15.0f0,
corner_radius=6.0f0
)
),
style=TooltipStyle(
width=220.0f0,
background_color=Vec4f(0.2, 0.5, 0.9, 0.95),
text_style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0))
),
position=:top,
show_delay=1.0,
hide_delay=0.5,
state=slow_tooltip_state[],
on_state_change=(new_state) -> slow_tooltip_state[] = new_state
)
], spacing=50.0f0)
], spacing=20.0f0),
style=ContainerStyle(
background_color=Vec4f(0.15, 0.15, 0.15, 1.0),
padding=30.0f0
)
),
style=dark_card_style,
title_style=dark_title_style
)
end
screenshot(MyApp, "tooltip_timing.png", 600, 300)
