SplitContainer

Split containers allow you to create resizable panels that users can adjust by dragging a handle between them. Fugl.jl provides both horizontal and vertical split containers with external state management for a clean, functional UI paradigm.

The SplitContainerState struct holds the split position and interaction state, while the on_state_change callback updates the external state reference when users drag the handle.

The SplitContainerStyle struct encapsulates visual appearance settings like handle thickness, colors, and minimum panel sizes, making it easy to create reusable style configurations across your application.

using Fugl
using Fugl: Text, SplitContainerState, SplitContainerStyle

function MyApp()
    # Create state refs for split containers
    horizontal_split_state = Ref(SplitContainerState(split_position=0.3f0))  # Start with 30% for left panel
    vertical_split_state = Ref(SplitContainerState(split_position=0.4f0))    # Start with 40% for top panel

    # Create some simple content for the splits
    left_content = Container(
        Text("Click and drag the gray bar to resize!")
    )

    right_content = Container(
        Text("This side can be resized by dragging the splitter handle.")
    )

    # Create horizontal split container - recreated each frame with current state
    horizontal_split = HorizontalSplitContainer(
        left_content,
        right_content,
        style=SplitContainerStyle(),
        state=horizontal_split_state[],
        on_state_change=(new_state) -> horizontal_split_state[] = new_state
    )

    # Create some content for vertical split
    top_content = Container(
        Text("This demonstrates vertical splitting")
    )

    # Create main vertical split with horizontal split in bottom - recreated each frame with current state
    main_split = VerticalSplitContainer(
        top_content,
        horizontal_split,
        style=SplitContainerStyle(),
        state=vertical_split_state[],
        on_state_change=(new_state) -> vertical_split_state[] = new_state
    )

    return main_split
end

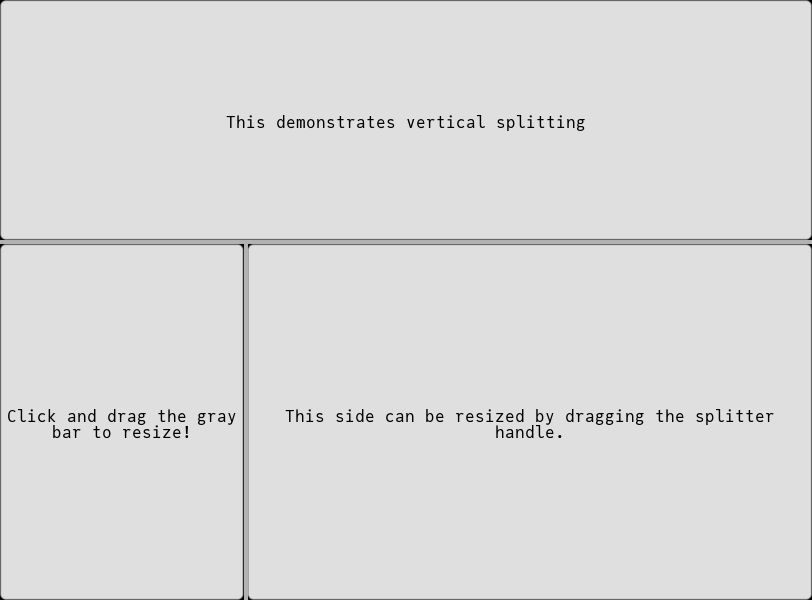

screenshot(MyApp, "split_containers.png", 812, 600);
