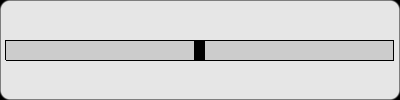

HorizontalSlider
The HorizontalSlider component provides interactive value selection with support for state management, visual feedback, and discrete step snapping.
Slider with State Management and Steps
using Fugl
using Fugl: Text
function slider_demo()
# Slider states with different configurations
continuous_state = Ref(SliderState(0.5, 0.0, 1.0))
discrete_state = Ref(SliderState(50, 0, 100))
stepped_state = Ref(SliderState(0.2, 0.0, 1.0))
# Dark theme styles
dark_container_style = ContainerStyle(
background_color=Vec4f(0.08, 0.08, 0.08, 1.0),
border_color=Vec4f(0.3, 0.3, 0.3, 1.0),
border_width=1.0f0,
corner_radius=8.0f0,
padding=20.0f0
)
dark_card_style = ContainerStyle(
background_color=Vec4f(0.15, 0.15, 0.15, 1.0),
border_color=Vec4f(0.4, 0.4, 0.4, 1.0),
border_width=1.0f0,
corner_radius=8.0f0
)
dark_text_style = TextStyle(
color=Vec4f(0.9, 0.9, 0.9, 1.0),
size_points=16
)
dark_card_title_style = TextStyle(
color=Vec4f(0.9, 0.9, 0.9, 1.0),
size_points=16
)
dark_slider_style = SliderStyle(
background_color=Vec4f(0.2, 0.2, 0.2, 1.0),
handle_color=Vec4f(0.6, 0.7, 0.8, 1.0),
border_color=Vec4f(0.5, 0.5, 0.5, 1.0),
border_width=1.0f0,
radius=4.0f0,
fill_color=Vec4f(0.4, 0.6, 0.8, 0.6),
marker_color=Vec4f(0.6, 0.6, 0.6, 0.8)
)
# Focused style - lighter colors for hover state
focused_slider_style = SliderStyle(
background_color=Vec4f(0.25, 0.25, 0.3, 1.0),
handle_color=Vec4f(0.7, 0.8, 0.9, 1.0),
border_color=Vec4f(0.6, 0.6, 0.7, 1.0),
border_width=1.5f0,
radius=4.0f0,
fill_color=Vec4f(0.5, 0.7, 0.9, 0.8),
marker_color=Vec4f(0.8, 0.8, 0.8, 1.0)
)
# Dragging style - blue accent for active dragging
dragging_slider_style = SliderStyle(
background_color=Vec4f(0.2, 0.25, 0.35, 1.0),
handle_color=Vec4f(0.3, 0.6, 1.0, 1.0),
border_color=Vec4f(0.4, 0.6, 0.8, 1.0),
border_width=2.0f0,
radius=4.0f0,
fill_color=Vec4f(0.3, 0.6, 1.0, 0.8),
marker_color=Vec4f(0.9, 0.9, 1.0, 1.0)
)
Container(
IntrinsicColumn([
# Continuous slider with interaction styles
Card(
"Interactive Slider with State Styles",
Column([
HorizontalSlider(
continuous_state[];
style=dark_slider_style,
focused_style=focused_slider_style,
dragging_style=dragging_slider_style,
on_state_change=(new_state) -> continuous_state[] = new_state,
on_change=(new_value) -> println("Continuous: ", new_value)
),
Text("Value: $(round(continuous_state[].value, digits=3))", style=dark_text_style),
Text("Hover and drag to see different styles!", style=TextStyle(color=Vec4f(0.7, 0.7, 0.7, 1.0), size_points=12))
]),
style=dark_card_style,
title_style=dark_card_title_style
),
# Continuous slider
Card(
"Continuous Slider",
Column([
HorizontalSlider(
continuous_state[];
style=dark_slider_style,
on_state_change=(new_state) -> continuous_state[] = new_state,
on_change=(new_value) -> println("Continuous: ", new_value)
),
Text("Value: $(round(continuous_state[].value, digits=3))", style=dark_text_style)
]),
style=dark_card_style,
title_style=dark_card_title_style
),
# Discrete steps slider
Card(
"Discrete Steps (10 steps)",
Column([
HorizontalSlider(
discrete_state[];
steps=11, # 11 positions = 10 intervals
style=dark_slider_style,
on_state_change=(new_state) -> discrete_state[] = new_state,
on_change=(new_value) -> println("Discrete: ", new_value)
),
Text("Value: $(Int(discrete_state[].value))", style=dark_text_style)
]),
style=dark_card_style,
title_style=dark_card_title_style
),
# Fixed step size slider
Card(
"Fixed Step Size (0.1)",
Column([
HorizontalSlider(
stepped_state[];
steps=0.1, # Step by 0.1
style=dark_slider_style,
on_state_change=(new_state) -> stepped_state[] = new_state,
on_change=(new_value) -> println("Stepped: ", new_value)
),
Text("Value: $(stepped_state[].value)", style=dark_text_style)
]),
style=dark_card_style,
title_style=dark_card_title_style
)
], spacing=20),
style=dark_container_style
)
end

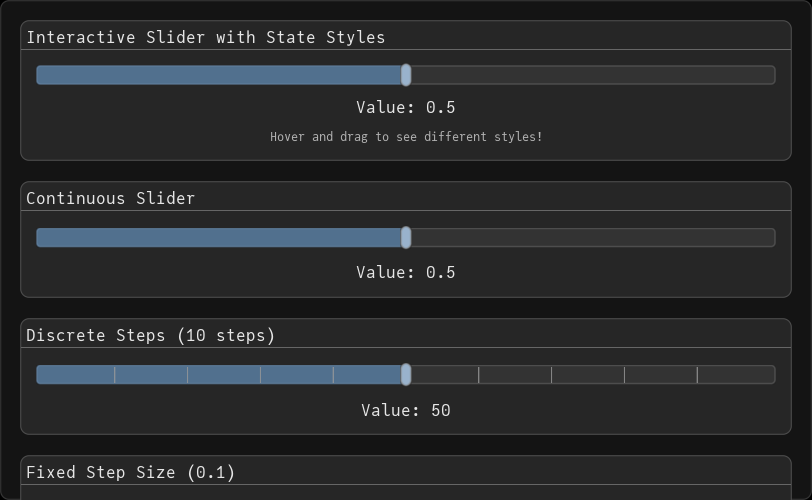

screenshot(slider_demo, "slider.png", 812, 500);
RGB Color Picker with Hidden Step Markers
using Fugl
using Fugl: Text
# RGB color states
rgb_r_state = Ref(SliderState(Int, 200, 0, 255))
rgb_g_state = Ref(SliderState(Int, 50, 0, 255))
rgb_b_state = Ref(SliderState(Int, 150, 0, 255))
# Dark theme styles
dark_container_style = ContainerStyle(
background_color=Vec4f(0.08, 0.08, 0.08, 1.0),
border_color=Vec4f(0.3, 0.3, 0.3, 1.0),
border_width=1.0f0,
corner_radius=8.0f0,
padding=20.0f0
)
dark_card_style = ContainerStyle(
background_color=Vec4f(0.15, 0.15, 0.15, 1.0),
border_color=Vec4f(0.4, 0.4, 0.4, 1.0),
border_width=1.0f0,
corner_radius=8.0f0
)
# Color-themed slider styles with NO step markers (marker_color=nothing)
red_slider_style = SliderStyle(
background_color=Vec4f(0.25, 0.15, 0.15, 1.0),
handle_color=Vec4f(1.0, 0.4, 0.4, 1.0),
border_color=Vec4f(0.6, 0.3, 0.3, 1.0),
border_width=1.0f0,
radius=4.0f0,
fill_color=Vec4f(0.8, 0.2, 0.2, 0.7),
marker_color=nothing, # Hidden step markers
track_height=18.0f0,
handle_width=14.0f0
)
green_slider_style = SliderStyle(
background_color=Vec4f(0.15, 0.25, 0.15, 1.0),
handle_color=Vec4f(0.4, 1.0, 0.4, 1.0),
border_color=Vec4f(0.3, 0.6, 0.3, 1.0),
border_width=1.0f0,
radius=4.0f0,
fill_color=Vec4f(0.2, 0.8, 0.2, 0.7),
marker_color=nothing, # Hidden step markers
track_height=18.0f0,
handle_width=14.0f0
)
blue_slider_style = SliderStyle(
background_color=Vec4f(0.15, 0.15, 0.25, 1.0),
handle_color=Vec4f(0.4, 0.4, 1.0, 1.0),
border_color=Vec4f(0.3, 0.3, 0.6, 1.0),
border_width=1.0f0,
radius=4.0f0,
fill_color=Vec4f(0.2, 0.2, 0.8, 0.7),
marker_color=nothing, # Hidden step markers
track_height=18.0f0,
handle_width=14.0f0
)
function rgb_color_picker_demo()
Card(
"RGB Color Picker",
IntrinsicColumn([
# Red slider
Row([
Container(
Text("R:", style=TextStyle(color=Vec4f(1.0, 0.5, 0.5, 1.0), size_points=16)),
style=ContainerStyle(padding=5.0f0, background_color=Vec4f(0.0, 0.0, 0.0, 0.0))
),
HorizontalSlider(
rgb_r_state[];
steps=256, # 0-255 steps, but markers are hidden
style=red_slider_style,
on_state_change=(new_state) -> rgb_r_state[] = new_state
),
Container(
Text("$(rgb_r_state[].value)", style=TextStyle(size_points=14, color=Vec4f(0.8, 0.8, 0.8, 1.0))),
style=ContainerStyle(padding=5.0f0, background_color=Vec4f(0.0, 0.0, 0.0, 0.0))
)
]),
# Green slider
Row([
Container(
Text("G:", style=TextStyle(color=Vec4f(0.5, 1.0, 0.5, 1.0), size_points=16)),
style=ContainerStyle(padding=5.0f0, background_color=Vec4f(0.0, 0.0, 0.0, 0.0))
),
HorizontalSlider(
rgb_g_state[];
steps=256, # 0-255 steps, but markers are hidden
style=green_slider_style,
on_state_change=(new_state) -> rgb_g_state[] = new_state
),
Container(
Text("$(rgb_g_state[].value)", style=TextStyle(size_points=14, color=Vec4f(0.8, 0.8, 0.8, 1.0))),
style=ContainerStyle(padding=5.0f0, background_color=Vec4f(0.0, 0.0, 0.0, 0.0))
)
]),
# Blue slider
Row([
Container(
Text("B:", style=TextStyle(color=Vec4f(0.5, 0.5, 1.0, 1.0), size_points=16)),
style=ContainerStyle(padding=5.0f0, background_color=Vec4f(0.0, 0.0, 0.0, 0.0))
),
HorizontalSlider(
rgb_b_state[];
steps=256, # 0-255 steps, but markers are hidden
style=blue_slider_style,
on_state_change=(new_state) -> rgb_b_state[] = new_state
),
Container(
Text("$(rgb_b_state[].value)", style=TextStyle(size_points=14, color=Vec4f(0.8, 0.8, 0.8, 1.0))),
style=ContainerStyle(padding=5.0f0, background_color=Vec4f(0.0, 0.0, 0.0, 0.0))
)
]),
# Color preview
FixedHeight(
Container(
Text(
"RGB($(rgb_r_state[].value), $(rgb_g_state[].value), $(rgb_b_state[].value))",
style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0), size_points=16)
),
style=ContainerStyle(
background_color=Vec4f(
rgb_r_state[].value / 255.0f0,
rgb_g_state[].value / 255.0f0,
rgb_b_state[].value / 255.0f0,
1.0
),
border_color=Vec4f(0.6, 0.6, 0.6, 1.0),
border_width=2.0f0,
corner_radius=5.0f0,
padding=15.0f0
)
),
50.0f0
),
Text(
"Note: Step markers are hidden (marker_color=nothing) for clean appearance",
style=TextStyle(color=Vec4f(0.6, 0.6, 0.6, 1.0), size_points=12)
)
], spacing=15),
style=dark_card_style,
title_style=TextStyle(color=Vec4f(1.0, 1.0, 1.0, 1.0), size_points=16)
)
end

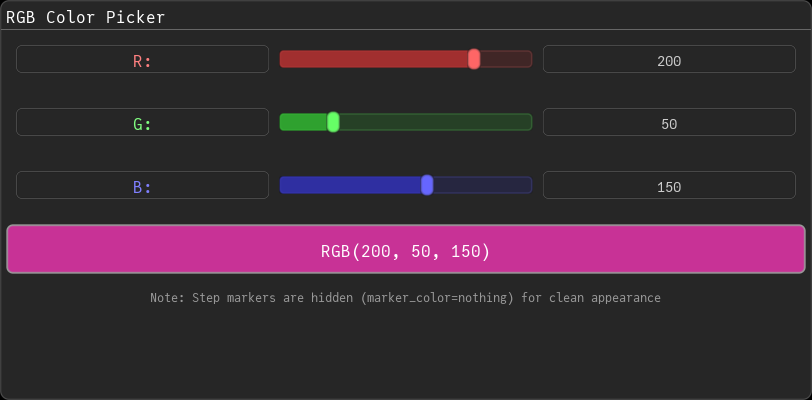

screenshot(rgb_color_picker_demo, "slider_rgb.png", 812, 400);

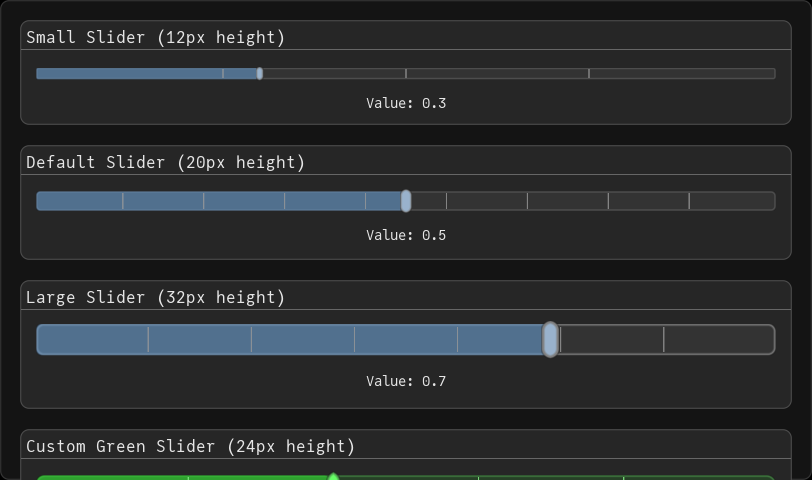

Slider Sizing and Styling
using Fugl
using Fugl: Text
# States for different sized sliders
small_state = Ref(SliderState(0.3, 0.0, 1.0))
default_state = Ref(SliderState(0.5, 0.0, 1.0))
large_state = Ref(SliderState(0.7, 0.0, 1.0))
custom_state = Ref(SliderState(0.4, 0.0, 1.0))
# Dark theme styles
dark_container_style = ContainerStyle(
background_color=Vec4f(0.08, 0.08, 0.08, 1.0),
border_color=Vec4f(0.3, 0.3, 0.3, 1.0),
border_width=1.0f0,
corner_radius=8.0f0,
padding=20.0f0
)
dark_card_style = ContainerStyle(
background_color=Vec4f(0.15, 0.15, 0.15, 1.0),
border_color=Vec4f(0.4, 0.4, 0.4, 1.0),
border_width=1.0f0,
corner_radius=8.0f0
)
dark_text_style = TextStyle(
color=Vec4f(0.9, 0.9, 0.9, 1.0),
size_points=14
)
dark_card_title_style = TextStyle(
color=Vec4f(0.9, 0.9, 0.9, 1.0),
size_points=16
)
# Small slider style
small_slider_style = SliderStyle(
background_color=Vec4f(0.2, 0.2, 0.2, 1.0),
handle_color=Vec4f(0.6, 0.7, 0.8, 1.0),
border_color=Vec4f(0.5, 0.5, 0.5, 1.0),
border_width=1.0f0,
radius=2.0f0,
fill_color=Vec4f(0.4, 0.6, 0.8, 0.6),
marker_color=Vec4f(0.6, 0.6, 0.6, 0.8),
track_height=12.0f0, # Smaller track
handle_width=8.0f0, # Smaller handle
handle_height_offset=2.0f0,
min_width=40.0f0
)
# Default slider style
default_slider_style = SliderStyle(
background_color=Vec4f(0.2, 0.2, 0.2, 1.0),
handle_color=Vec4f(0.6, 0.7, 0.8, 1.0),
border_color=Vec4f(0.5, 0.5, 0.5, 1.0),
border_width=1.0f0,
radius=4.0f0,
fill_color=Vec4f(0.4, 0.6, 0.8, 0.6),
marker_color=Vec4f(0.6, 0.6, 0.6, 0.8)
# Uses default sizing: track_height=20.0f0, handle_width=12.0f0, etc.
)
# Large slider style
large_slider_style = SliderStyle(
background_color=Vec4f(0.2, 0.2, 0.2, 1.0),
handle_color=Vec4f(0.6, 0.7, 0.8, 1.0),
border_color=Vec4f(0.5, 0.5, 0.5, 1.0),
border_width=2.0f0,
radius=6.0f0,
fill_color=Vec4f(0.4, 0.6, 0.8, 0.6),
marker_color=Vec4f(0.6, 0.6, 0.6, 0.8),
track_height=32.0f0, # Larger track
handle_width=18.0f0, # Larger handle
handle_height_offset=6.0f0,
min_width=80.0f0
)
# Custom styled slider
custom_slider_style = SliderStyle(
background_color=Vec4f(0.15, 0.25, 0.15, 1.0),
handle_color=Vec4f(0.4, 1.0, 0.4, 1.0),
border_color=Vec4f(0.3, 0.6, 0.3, 1.0),
border_width=1.5f0,
radius=8.0f0,
fill_color=Vec4f(0.2, 0.8, 0.2, 0.7),
marker_color=Vec4f(0.5, 0.9, 0.5, 0.9),
track_height=24.0f0,
handle_width=14.0f0,
handle_height_offset=8.0f0,
min_width=60.0f0
)
function slider_sizing_demo()
Container(
IntrinsicColumn([
Card(
"Small Slider (12px height)",
Column([
HorizontalSlider(
small_state[];
steps=5,
style=small_slider_style,
on_state_change=(new_state) -> small_state[] = new_state
),
Text("Value: $(round(small_state[].value, digits=2))", style=dark_text_style)
]),
style=dark_card_style,
title_style=dark_card_title_style
),
Card(
"Default Slider (20px height)",
Column([
HorizontalSlider(
default_state[];
steps=10,
style=default_slider_style,
on_state_change=(new_state) -> default_state[] = new_state
),
Text("Value: $(round(default_state[].value, digits=2))", style=dark_text_style)
]),
style=dark_card_style,
title_style=dark_card_title_style
),
Card(
"Large Slider (32px height)",
Column([
HorizontalSlider(
large_state[];
steps=8,
style=large_slider_style,
on_state_change=(new_state) -> large_state[] = new_state
),
Text("Value: $(round(large_state[].value, digits=2))", style=dark_text_style)
]),
style=dark_card_style,
title_style=dark_card_title_style
),
Card(
"Custom Green Slider (24px height)",
Column([
HorizontalSlider(
custom_state[];
steps=6,
style=custom_slider_style,
on_state_change=(new_state) -> custom_state[] = new_state
),
Text("Value: $(round(custom_state[].value, digits=2))", style=dark_text_style)
]),
style=dark_card_style,
title_style=dark_card_title_style
)
], spacing=20),
style=dark_container_style
)
end
screenshot(slider_sizing_demo, "slider_sizes.png", 812, 480);
