using Fugl
using Fugl: Text

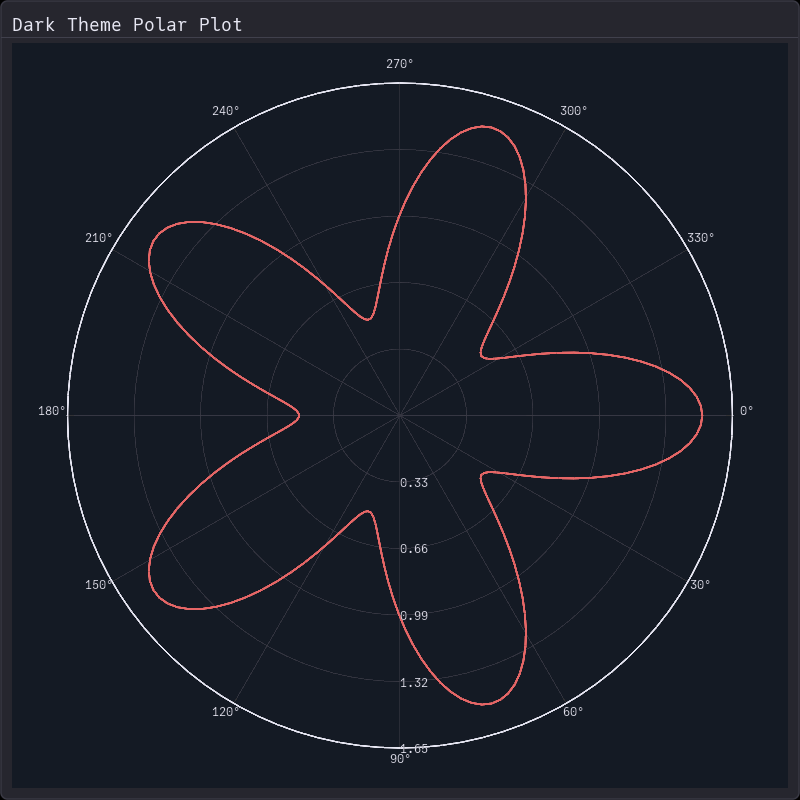

# Create a rose curve: r = 1 + 0.5*cos(5θ)
theta = range(0, 2π, length=200)
r = 1.0f0 .+ 0.5f0 .* cos.(5.0f0 .* theta)
# Dark theme card style
dark_card_style = ContainerStyle(
background_color=Vec4f(0.15, 0.15, 0.18, 1.0), # Dark background
border_color=Vec4f(0.25, 0.25, 0.30, 1.0), # Subtle border
border_width=1.5f0,
padding=12.0f0,
corner_radius=6.0f0,
anti_aliasing_width=1.0f0
)
# Dark theme title style
dark_title_style = TextStyle(
size_points=18,
color=Vec4f(0.9, 0.9, 0.95, 1.0) # Light text for titles
)
# Rose curve style - dark theme
rose_style = PolarStyle(
background_color=Vec4f(0.08, 0.10, 0.14, 1.0), # Very dark background
show_radial_grid=true,
show_angular_grid=true,
radial_grid_color=Vec4f(0.25, 0.25, 0.30, 1.0), # Subtle grid
angular_grid_color=Vec4f(0.25, 0.25, 0.30, 1.0),
show_outer_circle=true,
outer_circle_color=Vec4f(0.9, 0.9, 0.95, 1.0), # Light outer circle
outer_circle_width=2.0f0,
label_color=Vec4f(0.9, 0.9, 0.95, 1.0) # Light labels
)
# Configure state: 0° points to the right (default)
polar_state = PolarState(
theta_start=0.0f0, # 0 radians = right/east
theta_direction=:counterclockwise,
num_angular_lines=12, # Every 30 degrees
angular_label_format=:degrees
)
function MyApp()
Card(
"Dark Theme Polar Plot",
PolarPlot(
[PolarLine(
Float32.(r),
Float32.(theta),
color=Vec4f(0.9, 0.4, 0.4, 1.0), # Bright red for dark background
width=2.5f0
)],
rose_style,
polar_state
),
style=dark_card_style,
title_style=dark_title_style
)
end
screenshot(MyApp, "polarPlot.png", 800, 800);
using Fugl
using Fugl: Text

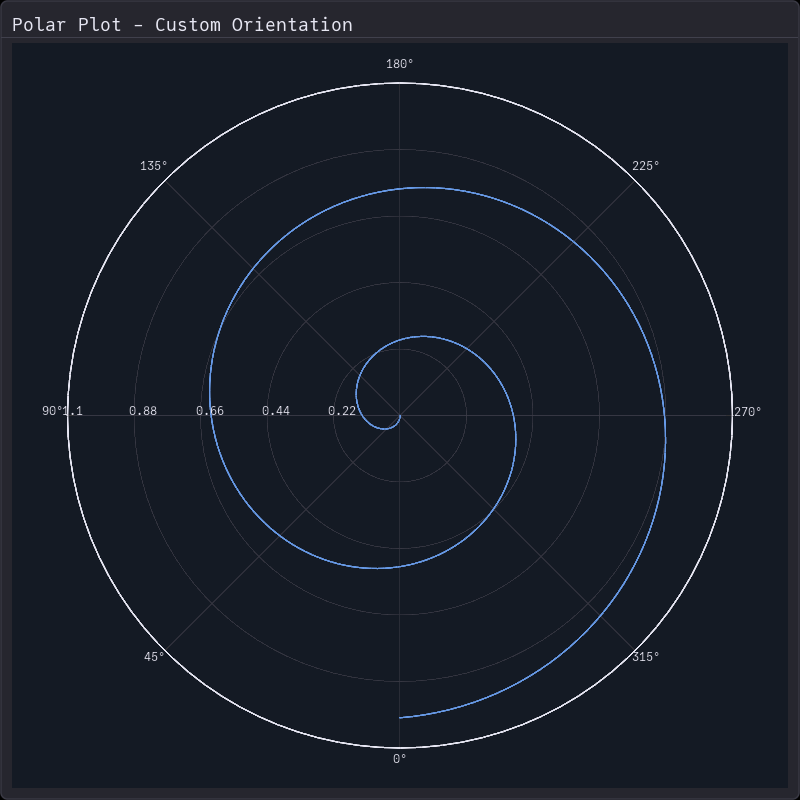

# Create spiral pattern
theta = range(0, 4π, length=300)
r = theta ./ (4π) # Spiral from 0 to 1
# Dark theme card style
dark_card_style = ContainerStyle(
background_color=Vec4f(0.15, 0.15, 0.18, 1.0),
border_color=Vec4f(0.25, 0.25, 0.30, 1.0),
border_width=1.5f0,
padding=12.0f0,
corner_radius=6.0f0,
anti_aliasing_width=1.0f0
)
dark_title_style = TextStyle(
size_points=18,
color=Vec4f(0.9, 0.9, 0.95, 1.0)
)
# Dark theme polar style
polar_style = PolarStyle(
background_color=Vec4f(0.08, 0.10, 0.14, 1.0),
show_radial_grid=true,
show_angular_grid=true,
radial_grid_color=Vec4f(0.25, 0.25, 0.30, 1.0),
angular_grid_color=Vec4f(0.25, 0.25, 0.30, 1.0),
show_outer_circle=true,
outer_circle_color=Vec4f(0.9, 0.9, 0.95, 1.0),
outer_circle_width=2.0f0,
label_color=Vec4f(0.9, 0.9, 0.95, 1.0)
)
# Configure state: 0° points up (π/2 radians)
polar_state = PolarState(
theta_start=Float32(π / 2), # 0 radians now points up/north
theta_direction=:counterclockwise,
num_radial_circles=5,
num_angular_lines=8,
angular_label_format=:degrees
)
function MyApp()
Card(
"Polar Plot - Custom Orientation",
PolarPlot(
[
PolarLine(
Float32.(r),
Float32.(theta),
color=Vec4f(0.4, 0.6, 0.9, 1.0), # Bright blue
width=2.0f0
)
],
polar_style,
polar_state
),
style=dark_card_style,
title_style=dark_title_style
)
end
screenshot(MyApp, "polarOrientation.png", 800, 800);
using Fugl
using Fugl: Text

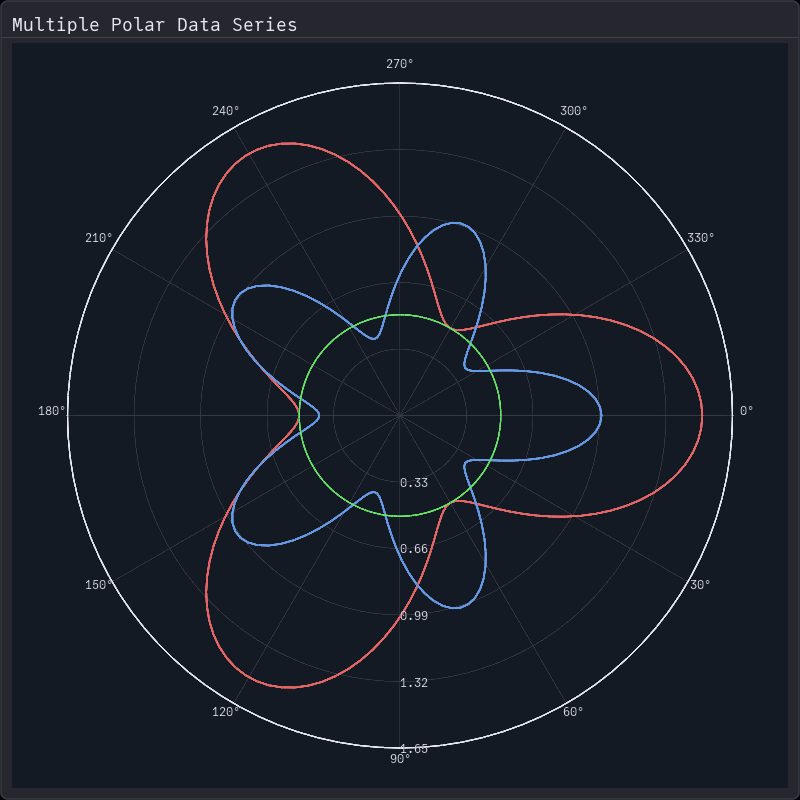

# Create three different polar patterns
theta = range(0, 2π, length=150)
# Rose curve with 3 petals
r1 = 1.0f0 .+ 0.5f0 .* cos.(3.0f0 .* theta)
# Rose curve with 5 petals (smaller)
r2 = 0.7f0 .+ 0.3f0 .* cos.(5.0f0 .* theta)
# Circle
r3 = fill(0.5f0, length(theta))
# Dark theme card style
dark_card_style = ContainerStyle(
background_color=Vec4f(0.15, 0.15, 0.18, 1.0),
border_color=Vec4f(0.25, 0.25, 0.30, 1.0),
border_width=1.5f0,
padding=12.0f0,
corner_radius=6.0f0
)
dark_title_style = TextStyle(
size_points=18,
color=Vec4f(0.9, 0.9, 0.95, 1.0)
)
# Dark theme polar style
polar_style = PolarStyle(
background_color=Vec4f(0.08, 0.10, 0.14, 1.0),
show_radial_grid=true,
show_angular_grid=true,
radial_grid_color=Vec4f(0.25, 0.25, 0.30, 1.0),
angular_grid_color=Vec4f(0.25, 0.25, 0.30, 1.0),
show_outer_circle=true,
outer_circle_color=Vec4f(0.9, 0.9, 0.95, 1.0),
outer_circle_width=2.0f0,
label_color=Vec4f(0.9, 0.9, 0.95, 1.0)
)
polar_state = PolarState(
theta_start=0.0f0,
theta_direction=:counterclockwise,
num_angular_lines=12,
angular_label_format=:degrees
)
function MyApp()
Card(
"Multiple Polar Data Series",
PolarPlot(
[
PolarLine(
Float32.(r1),
Float32.(theta),
color=Vec4f(0.9, 0.4, 0.4, 1.0), # Bright red
width=2.5f0
),
PolarLine(
Float32.(r2),
Float32.(theta),
color=Vec4f(0.4, 0.6, 0.9, 1.0), # Bright blue
width=2.5f0
),
PolarLine(
Float32.(r3),
Float32.(theta),
color=Vec4f(0.4, 0.9, 0.4, 1.0), # Bright green
width=2.0f0
)
],
polar_style,
polar_state
),
style=dark_card_style,
title_style=dark_title_style
)
end
screenshot(MyApp, "polarMultiSeries.png", 800, 800);
using Fugl
using Fugl: Text
# Create data points at regular angular intervals
theta = range(0, 2π, length=12)
r = 0.5f0 .+ 0.3f0 .* sin.(3.0f0 .* theta)
# Dark theme card style
dark_card_style = ContainerStyle(
background_color=Vec4f(0.15, 0.15, 0.18, 1.0),
border_color=Vec4f(0.25, 0.25, 0.30, 1.0),
border_width=1.5f0,
padding=12.0f0,
corner_radius=6.0f0
)
dark_title_style = TextStyle(
size_points=18,
color=Vec4f(0.9, 0.9, 0.95, 1.0)
)
# Dark theme polar style
polar_style = PolarStyle(
background_color=Vec4f(0.08, 0.10, 0.14, 1.0),
show_radial_grid=true,
show_angular_grid=true,
radial_grid_color=Vec4f(0.25, 0.25, 0.30, 1.0),
angular_grid_color=Vec4f(0.25, 0.25, 0.30, 1.0),
show_outer_circle=true,
outer_circle_color=Vec4f(0.9, 0.9, 0.95, 1.0),
outer_circle_width=2.0f0,
label_color=Vec4f(0.9, 0.9, 0.95, 1.0)
)
polar_state = PolarState(
theta_start=0.0f0,
theta_direction=:counterclockwise,
num_angular_lines=12,
angular_label_format=:degrees
)
function MyApp()
Card(

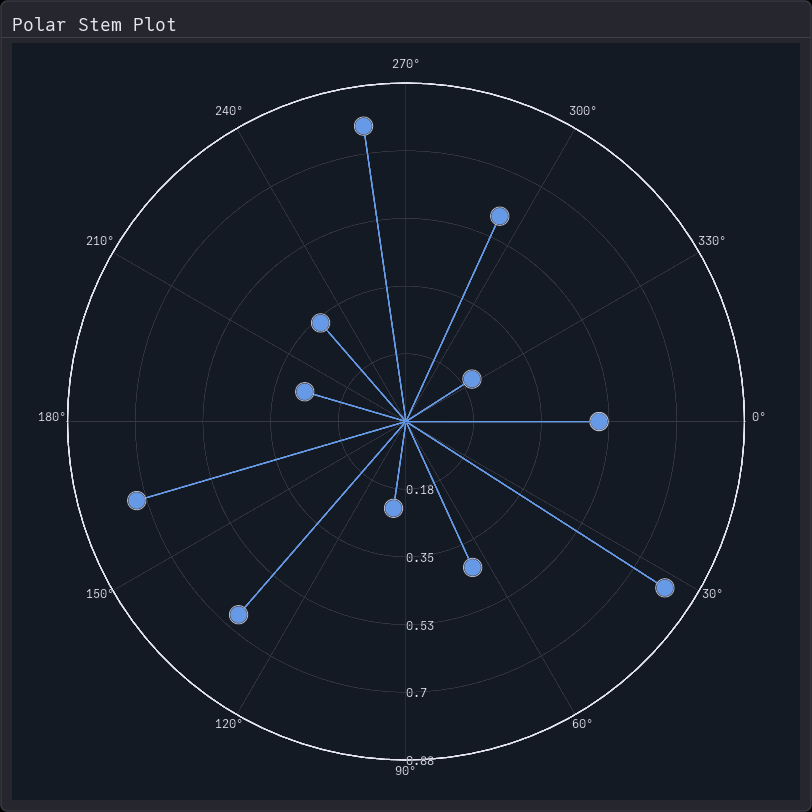

"Polar Stem Plot",
PolarPlot(
[
PolarStem(
Float32.(r),
Float32.(theta),
line_color=Vec4f(0.4, 0.6, 0.9, 1.0), # Bright blue
line_width=2.0f0,
fill_color=Vec4f(0.4, 0.6, 0.9, 1.0), # Bright blue (matching)
border_color=Vec4f(0.9, 0.9, 0.95, 1.0),
marker_size=10.0f0,
border_width=1.5f0
)
],
polar_style,
polar_state
),
style=dark_card_style,
title_style=dark_title_style
)
end
screenshot(MyApp, "polarStem.png", 812, 812);
