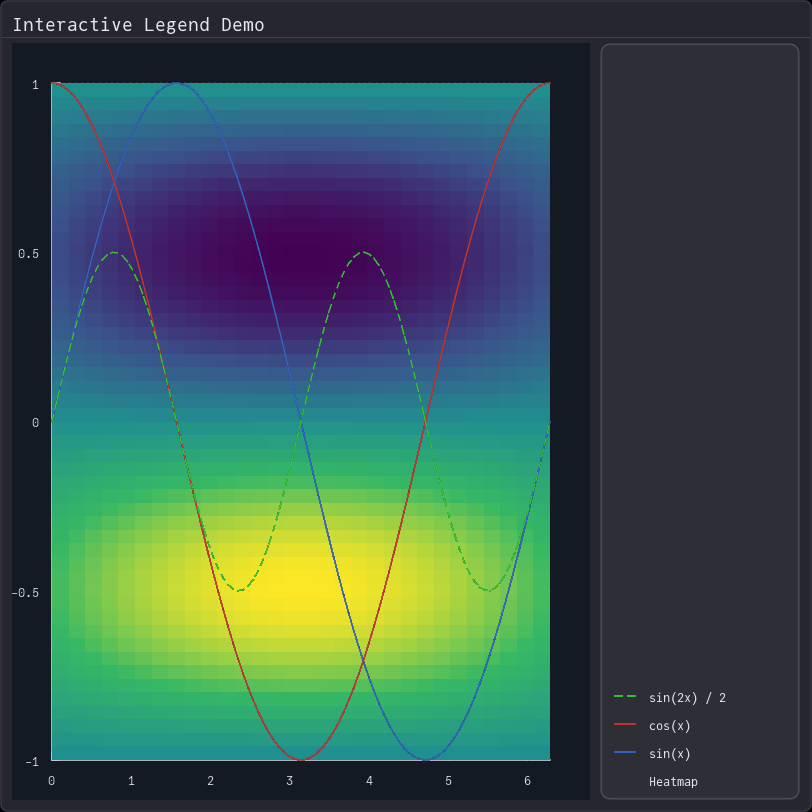

Interactive Legend

Click on legend items to toggle visibility of plot elements.

using Fugl

# Dark theme plot style
style = Ref(PlotStyle(
    background_color=Vec4f(0.08, 0.10, 0.14, 1.0),
    show_grid=true,
    grid_color=Vec4f(0.25, 0.25, 0.30, 1.0),
    axis_color=Vec4f(0.9, 0.9, 0.95, 1.0),
    show_left_axis=true,
    show_bottom_axis=true,
    show_x_tick_labels=true,
    show_y_tick_labels=true
))

# Create sample data
x = range(0, 2π, length=100)
line1_data = (collect(Float32, x), sin.(x) .|> Float32)
line2_data = (collect(Float32, x), cos.(x) .|> Float32)
line3_data = (collect(Float32, x), sin.(x .* 2) .* 0.5 .|> Float32)

# Create heatmap data - gradient background
heatmap_x = range(0, 2π, length=50)
heatmap_y = range(-1, 1, length=30)
heatmap_data = [sin(x) * cos(y) for y in heatmap_y, x in heatmap_x] .|> Float32

# Store plot elements in a Ref for dynamic updates
# Heatmap goes first so it renders in the back
elements = Ref([
    HeatmapElement(
        heatmap_data;
        x_range=(0.0, 2π),
        y_range=(-1.0, 1.0),
        colormap=:viridis,
        value_range=(-1.0, 1.0),
        label="Heatmap"
    ),
    LinePlotElement(
        line1_data[2];
        x_data=line1_data[1],
        color=Vec4f(0.2, 0.4, 0.8, 1.0),
        width=2.0f0,
        label="sin(x)"
    ),
    LinePlotElement(
        line2_data[2];
        x_data=line2_data[1],
        color=Vec4f(0.8, 0.2, 0.2, 1.0),
        width=2.0f0,
        label="cos(x)"
    ),
    LinePlotElement(
        line3_data[2];
        x_data=line3_data[1],
        color=Vec4f(0.2, 0.8, 0.2, 1.0),
        width=2.0f0,
        line_style=DASH,
        label="sin(2x) / 2"
    )
])

# Plot state
plot_state = Ref(PlotState())

function app()
    Card(
        "Interactive Legend Demo",
        IntrinsicRow([
            Plot(
                elements[],
                style[],
                plot_state[],
                (new_state) -> plot_state[] = new_state
            ),
            FixedWidth(
                Container(
                    Legend(
                        elements[],
                        text_style=TextStyle(size_points=12, color=Vec4f(0.9, 0.9, 0.95, 1.0)),
                        on_click=(idx) -> begin
                            # Toggle muted state of clicked element
                            old_elem = elements[][idx]
                            new_elem = toggle_mute(old_elem)

                            # Update elements array
                            new_elements = copy(elements[])
                            new_elements[idx] = new_elem
                            elements[] = new_elements
                        end
                    ),
                    style=ContainerStyle(
                        background_color=Vec4f(0.18, 0.18, 0.22, 0.95),
                        border_color=Vec4f(0.3, 0.3, 0.35, 1.0),
                        border_width=2.0f0,
                        padding=10.0f0,
                        corner_radius=8.0f0
                    )
                ),
                200.0f0
            )
        ]),
        style=ContainerStyle(
            background_color=Vec4f(0.15, 0.15, 0.18, 1.0),
            border_color=Vec4f(0.25, 0.25, 0.30, 1.0),
            border_width=1.5f0,
            padding=12.0f0,
            corner_radius=6.0f0
        ),
        title_style=TextStyle(size_points=18, color=Vec4f(0.9, 0.9, 0.95, 1.0))
    )
end

screenshot(app, "cartesianLegendInteractive.png", 812, 812);
