Element Radiation Pattern

The package is bundled with the radiation pattern of some typical antennas.

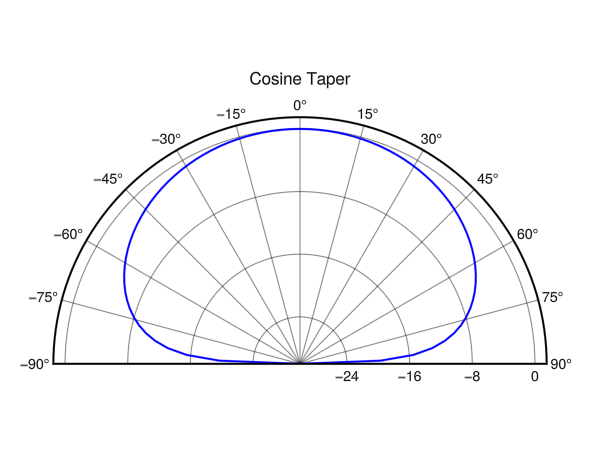

Cosine Taper

using GLMakie
using ArrayRadiation

angleRad = LinRange(π / 2, -π / 2, 81);

Ge = AntennaElement.cos_taper.(angleRad)
Ge_dB = DspUtility.pow2db(Ge)

y_lower_limit = -30 # dB
Ge_dB = clamp.(Ge_dB, y_lower_limit, Inf)

# Create figure and polar axis
f = Figure()
ax = PolarAxis(f[1, 1],
    title = "Cosine Taper",
    thetalimits = (-pi/2, pi/2),
    radius_at_origin = -30,
    theta_0 = -pi/2,
    direction = -1,
)
lines!(ax, angleRad, Ge_dB, color = :blue, linewidth = 2)
f
Example block output

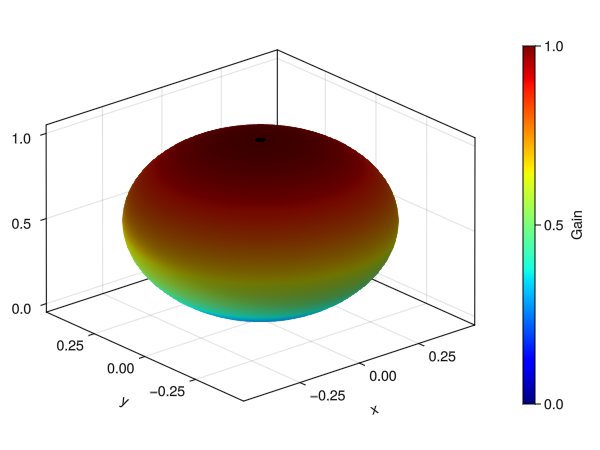

using GLMakie
using ArrayRadiation


# Coordinate space to be modeled
φs = range(0, 2π, length=361)   # angle within xy-plane relative to +x
θs = range(0, π, length=181)    # angle relative to +z
angles = [(φ,θ) for φ in φs, θ in θs]

# Our antennas gain as a function of elevation and azimuth angle.
Ge(θ,φ) = AntennaElement.cos_taper(θ)

# Get radius (the Element Gain) at each angle
rs = [Ge(θ, φ) for (φ,θ) in angles]

# Convert this data to a 2D mesh
spherical_mesh = [(r,φ,θ) for (r,(φ,θ)) in zip(rs,angles)]

# Convert spherical coordinates to rectangular coordinates
xs = [r*sin(θ)*cos(φ) for (r,φ,θ) in spherical_mesh]
ys = [r*sin(θ)*sin(φ) for (r,φ,θ) in spherical_mesh]
zs = [r*cos(θ)        for (r,φ,θ) in spherical_mesh]


# Plot
fig = Figure()
ax = Axis3(fig[1,1])
plt = surface!(ax, xs, ys, zs,
    color=rs,
    colormap=:jet1
)
Colorbar(fig[1,2], plt, label="Gain")
fig
Example block output

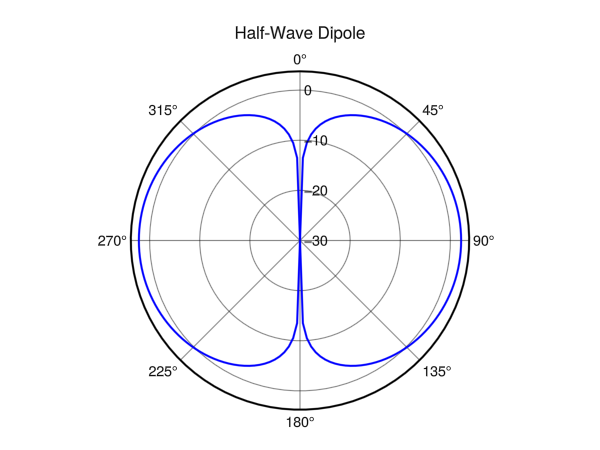

Half-Wave Dipole

using GLMakie
using ArrayRadiation

angleRad = LinRange(-π, π, 181);

Ge = AntennaElement.half_wave_dipole.(angleRad)
Ge_dB = DspUtility.pow2db(Ge)

y_lower_limit = -30 # dB
Ge_dB = clamp.(Ge_dB, y_lower_limit, Inf)

# Create figure and polar axis
f = Figure()
ax = PolarAxis(f[1, 1],
    title = "Half-Wave Dipole",
    #thetalimits = (-pi/2, pi/2),
    radius_at_origin = -30,
    theta_0 = -pi/2,
    direction = -1,
)
lines!(ax, angleRad, Ge_dB, color = :blue, linewidth = 2)
f
Example block output

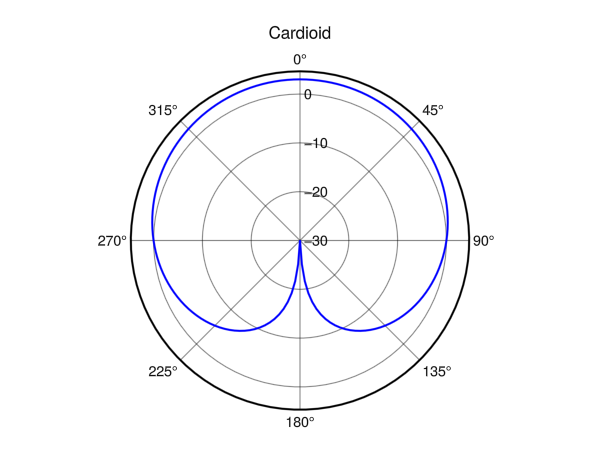

Cardioid

using GLMakie
using ArrayRadiation

angleRad = LinRange(-π, π, 161);

Ge = AntennaElement.cardioid.(angleRad)
Ge_dB = DspUtility.pow2db(Ge)

y_lower_limit = -30 # dB
Ge_dB = clamp.(Ge_dB, y_lower_limit, Inf)

# Create figure and polar axis
f = Figure()
ax = PolarAxis(f[1, 1],
    title = "Cardioid",
    #thetalimits = (-pi/2, pi/2),
    radius_at_origin = -30,
    theta_0 = -pi/2,
    direction = -1,
)
lines!(ax, angleRad, Ge_dB, color = :blue, linewidth = 2)
f
Example block output

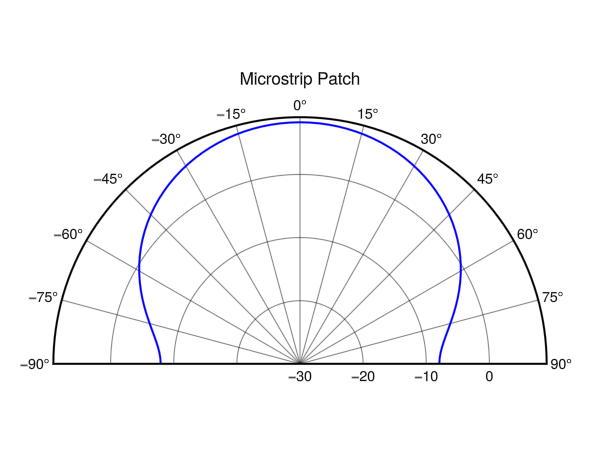

Microstrip Patch

using GLMakie
using ArrayRadiation

angleRad = LinRange(π / 2, -π / 2, 81);

Ge = AntennaElement.microstrip_patch.(angleRad)
Ge_dB = DspUtility.pow2db(Ge)

y_lower_limit = -30 # dB
Ge_dB = clamp.(Ge_dB, y_lower_limit, Inf)

# Create figure and polar axis
f = Figure()
ax = PolarAxis(f[1, 1],
    title = "Microstrip Patch",
    thetalimits = (-pi/2, pi/2),
    radius_at_origin = -30,
    theta_0 = -pi/2,
    direction = -1,
)
lines!(ax, angleRad, Ge_dB, color = :blue, linewidth = 2)
f
Example block output

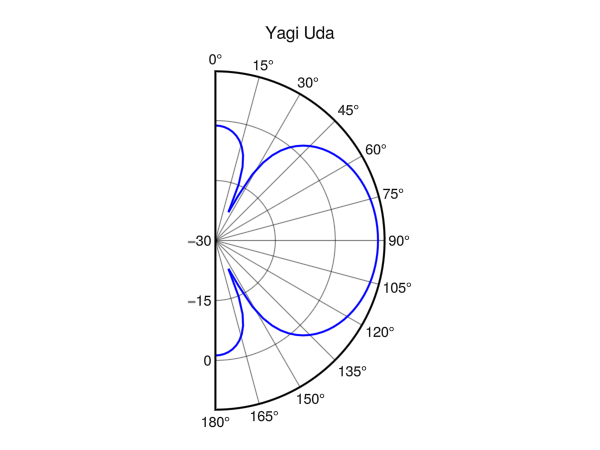

Yagi Uda

using GLMakie
using ArrayRadiation

angleRad = LinRange(0, π, 81);

Ge = AntennaElement.yagi_uda.(angleRad)
Ge_dB = DspUtility.pow2db(Ge)

y_lower_limit = -30 # dB
Ge_dB = clamp.(Ge_dB, y_lower_limit, Inf)

# Create figure and polar axis
f = Figure()
ax = PolarAxis(f[1, 1],
    title = "Yagi Uda",
    thetalimits = (-0, pi),
    radius_at_origin = -30,
    theta_0 = -pi/2,
    direction = -1,
)
lines!(ax, angleRad, Ge_dB, color = :blue, linewidth = 2)
f
Example block output
